Garmin ECHOMAP Ultra 2 102sv w/o Transducer [010-02879-00]

Garmin ECHOMAP Ultra 2 102sv w/o Transducer

Explore the depths with precision and clarity!

Product Description:

The Garmin 102sv UHD2 Fish Finder is your ultimate companion for successful fishing trips. Equipped with advanced sonar technology, this device provides crystal-clear images of what’s beneath your boat. The high-resolution 10” display ensures that every detail is visible, even in bright sunlight. Whether you're a professional angler or a weekend warrior, the 102sv UHD2 will elevate your fishing experience to new heights.

Key Features:

🔍 Ultra-High Definition Sonar: See incredibly clear images of fish and structures below and to the sides of your boat.

🖥️ 10” High-Resolution Display: Enjoy bright, sharp, and easy-to-read images in any lighting condition.

🌊 ClearVü and SideVü Scanning Sonar: Gain a detailed view of underwater environments to find more fish with ease.

🧭 Built-in GPS and Mapping: Mark your favorite spots and navigate with preloaded maps for over 17,000 lakes.

💧 Rugged and Waterproof: Built to withstand the harsh marine environment, ensuring durability and reliability.

📡 Wi-Fi Connectivity: Sync with your smartphone or tablet for software updates and sharing waypoints.

🔋 Long Battery Life: Fish longer with extended battery life, so you never miss a catch.

Upgrade your fishing adventures with the Garmin 102sv UHD2 Fish Finder and make every trip a successful one! 🌊🐟

In the Box:

• ECHOMAP Ultra 102sv
• Power/data cable
• Bail mount with quick-release cradle
• Protective sun cover
• 8-pin transducer to 12-pin sounder adapter cable
• Hardware
• Documentation

Specifications

General:

• Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
• Weight: 4.0 lbs (1.8 kg)
• Waterproof: IPX7
• Touchscreen: Yes
• Display Type: WXGA, IPS
• Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Mounting Options: Bail or flush
• Input: Touchscreen with Keyed Assist

Maps & Memory:

• Accepts Data Cards: 2 microSD cards
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors:

• GPS: Yes
• GLONASS: Yes
• Galileo: Yes
• BeiDou: Yes
• Has Built-In Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• NMEA 0183 Compatible: Yes
• Supports WAAS: Yes
• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes
• Garmin Navionics+ Inland & Coastal: Yes (see Additional)
• Tide Tables: Yes (see Additional)

Optional Map Support:

• BlueChart g3: Yes
• BlueChart g3 Vision: Yes
• LakeVü g3: Yes
• LakeVü g3 Ultra: Yes
• Garmin Navionics+™: Yes
• Garmin Navionics+ Vision+™: Yes
• TOPO 100k: Yes
• Standard Mapping: Yes
• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes
• DSC: Yes
• Supports Fusion-Link™ Compatible Radios: Yes
• ActiveCaptain® Compatible: Yes
• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC
• Typical Current Draw at 12 VDC: 2.5 A
• Maximum Current Draw at 12 VDC: 5.0 A
• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes
• Power Output: 600 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope: Yes

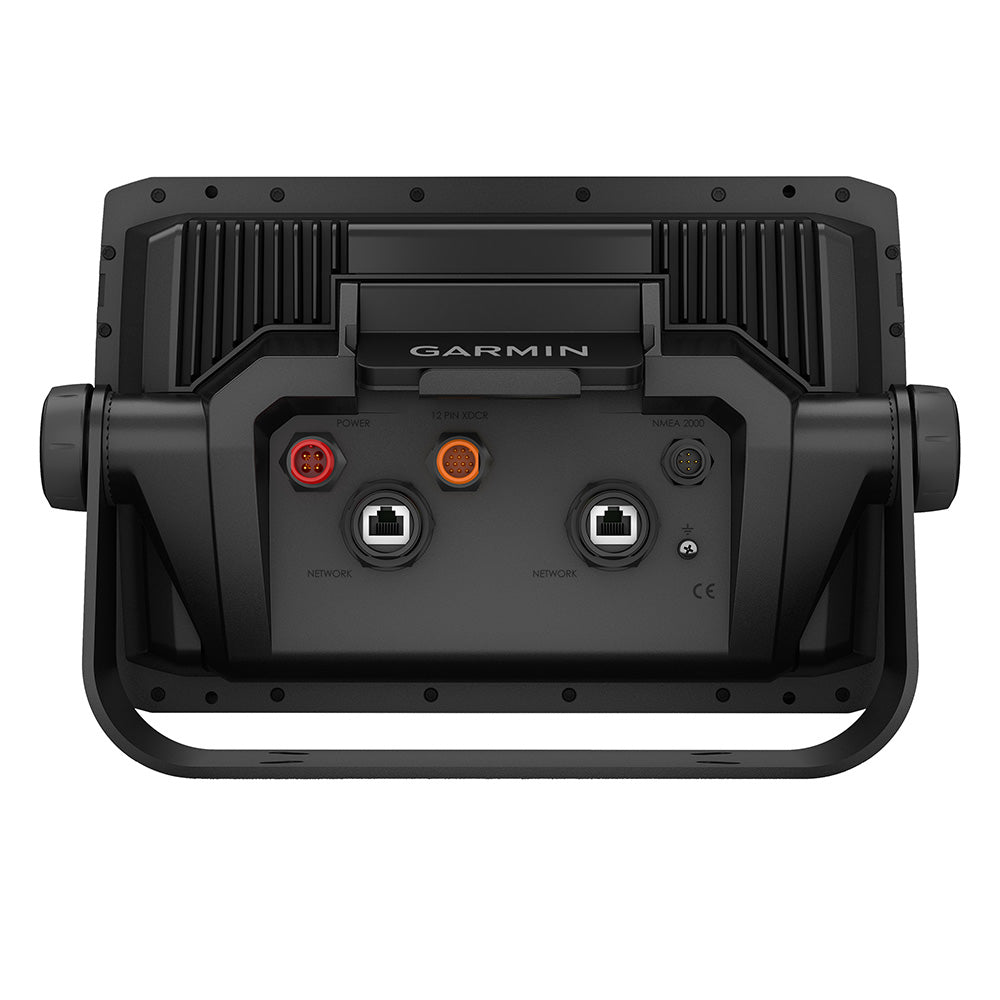

Connections:

• NMEA 2000® Ports: 1
• Garmin Marine Network Ports: 2 (Large Connector)
• 12-Pin Transducer Ports: 12-Pin Scanning Sonar
• ANT+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Screen Size: 10"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 8"H x 10"W x 14"L WT: 10.1 lbs
• UPC: 753759325480
